A solar energy diagram is the document that turns a sold job into an approved install. For installers, designers, and engineers, it shows every reviewer (AHJ, utility, crew, inspector) the same system the same way. A clear solar single-line diagram keeps the permit set consistent, and a clean solar interconnection diagram keeps the utility application moving. When any of those documents miss the mark, the project stalls.
This guide covers the diagrams installers actually ship: the core permit set, the code callouts reviewers look for, and the extra detail needed when storage is part of the project. We'll walk through the components you label on an on-grid solar system diagram, how to put a full solar panel system diagram together, and the most common reasons a solar panel connection diagram gets flagged in plan review.
At GreenLancer, we’ve spent over a decade refining the accuracy of solar power diagrams and plan sets. Our permit-ready documentation and engineering reviews help reduce delays, minimize costly changes, and accelerate approvals. Sign up for a free account to start ordering compliant solar panel system diagrams designed to meet AHJ standards nationwide.
Solar Energy Diagram vs. Solar Panel Diagram vs. Solar Power Diagram
Installers, homeowners, and reviewers use "solar energy diagram" to mean several different documents, and the overlap causes confusion. Before going deeper, here is how the common terms line up.
Term | What it shows | Primary audience | Where it lives |
Solar energy diagram | Broad energy flow across the whole system, including utility tie-in | Mixed (installers, reviewers, homeowners) | Cover or overview diagram |
Solar panel diagram | The PV side: modules, stringing, directly connected equipment | Installers and field crews | Array layout and wiring sheets |
Solar power diagram | Catch-all for electrical-focused drawings | Engineers and reviewers | SLD and supporting electrical pages |
Photovoltaic system diagram | Technical term, used interchangeably with solar PV system diagram | Engineers and utilities | Full plan set |
In practice, a permit package for a residential or light commercial project usually includes a solar single line diagram for the electrical path, a wiring diagram for field install, a site plan and roof layout for the physical design, and an interconnection diagram if the utility requires one.
471
Diagram Types in a Permit-Ready Solar Plan Set
Not every diagram has the same job. The permit set works when each drawing carries its own slice of information and every page agrees with the others.
Diagram type | Primary purpose | Required? | When you need it |
Single Line Diagram (SLD) | Electrical path from array to point of interconnection | Yes, nearly always | Every residential and C&I project |
Three-Line Diagram | Phase-level and fault-current detail | Sometimes | Complex, C&I, or utility-required projects |
Wiring / Connection Diagram | Field-install conductor routing and terminations | Often | Any project where SLD lacks install detail |
Site Plan and Array Layout | Physical layout, setbacks, equipment placement | Yes | Every project |
Interconnection Diagram | Utility-facing tie-in details | Utility-dependent | Most utility applications |
Storage SLD | PV plus battery architecture, critical loads, transfer equipment | Yes, for ESS projects | Any project with a battery |
Solar Single Line Diagram (SLD): The Core Solar Power Diagram for Permits
The solar single line diagram is the main electrical drawing in most permit sets. Reviewers use it to confirm how power moves from the PV string circuits to the point of interconnection, and how the system is protected along the way. If your SLD is clean, most of the permit review is already done.
A strong residential solar single line diagram usually shows:
PV array and string circuits (modules per string, number of strings)
Combiners or branch circuits, if applicable
Inverter architecture: string, microinverter, or hybrid
AC and DC disconnects, per NEC 690.13 and 690.15
Overcurrent protection devices and ratings
Service equipment and main panel bus rating
Metering, production meter if required, and the point of interconnection
Electrical values: Voc, Isc, Vmp, Imp, operating voltage and current, breaker sizes
Load-side interconnection under NEC 705.12, or supply-side under NEC 705.11
Consistency is where plan review tends to break down. If the SLD shows a load-side tap and the calculations show a supply-side tap, the reviewer will flag it. The values on the drawing need to match the equipment schedule, the BOM, and the interconnection calculation on the same page.
The NFPA National Electrical Code Article 690 remains the main reference for PV system electrical design, and the 2023 cycle updated several source-circuit and rapid shutdown provisions that most installers are now working from.
When You Need a Three-Line Diagram
A three-line diagram goes deeper than an SLD by showing phase-level detail, fault-current contributions, and conductor-level information for each phase of the system. Residential jobs rarely need one. Larger systems usually do.
Three-line diagrams come up most often on:
Commercial and industrial (C&I) projects
Complex interconnections or service upgrades
Jobs with battery storage, backup panels, or multiple distribution points
Utility programs with stricter documentation requirements
C&I projects typically require three-line diagrams showing transformer data, service equipment details, and fault-current contributions from the PV and ESS. Many jurisdictions and utilities also require a PE-stamped plan set for C&I work, which residential jobs usually do not. Installers expanding into commercial solar panel installations should plan for the added engineering review time and budget.
A deeper breakdown of when and how to build a three-line is in the solar three-line diagram guide.
Solar Interconnection Diagram: What the Utility Actually Reviews
A solar interconnection diagram is the utility-facing drawing for a PV system. Where the SLD serves the AHJ, the interconnection diagram serves the utility engineers reviewing the interconnection application.
The two drawings are related, and a clean SLD sometimes covers both, but many utilities still want a dedicated interconnection view.
The interconnection diagram typically shows:
Point of common coupling (PCC)
Utility meter and production meter, if required
Service equipment and main breaker rating
Interconnection method (load-side per NEC 705.12, or supply-side per NEC 705.11)
Inverter UL 1741 or UL 1741-SBÂ listing notation, for anti-islanding compliance
AC disconnect and its accessibility (many utilities require a visible, lockable AC disconnect)
Transformer information for C&I projects
Applicable IEEE 1547-2018Â reference
IEEE 1547-2018 is the current standard most utilities reference for distributed energy resource interconnection, and UL 1741-SB is the hardware listing that confirms the inverter can meet those grid-support profiles. When your inverter carries a UL 1741-SB listing, call it out on the drawing.
Every utility reviews interconnection applications a little differently. Some pre-approve packages in days. Others require upsized equipment, utility-side upgrades, or additional studies before approving a PCC. A detailed look at solar interconnection application requirements covers the revision triggers that cause the most delays.
Solar Panel Connection and Wiring Diagram: Field-Install Detail
The solar panel connection diagram is the drawing that the install crew uses in the field. Where the SLD shows the electrical concept, the wiring diagram shows conductor sizes, routing, and termination details so the system can actually get built.
A good wiring diagram covers:
Conductor sizes and types (THWN-2, USE-2, PV Wire, MC-4)
Conduit routing, sizes, and fill assumptions
Conductor counts per raceway
Junction box and splice locations
Disconnect and inverter wiring details
Equipment grounding conductor (EGC) path and bonding
Stringing details for string inverter systems (modules per string, parallel strings, cold-weather Voc check)
For an install crew, the wiring diagram is often more important than the SLD because it answers the day-of-install questions. For the inspector, it supports a clean commissioning and a smooth permission to operate (PTO) process.
Stringing is a common place for early rejection. The cold-weather Voc calculation must stay under the inverter's maximum DC input at the site's record low temperature, not just the nameplate voltage at 25°C. The solar panel wiring guide walks through stringing math and conductor sizing in detail.
Site Plan and Array Layout
The site plan and array layout drawings cover the physical design. This is where a lot of permit redlines happen because the electrical work is fine, but the layout is missing pathway dimensions, setbacks, or equipment locations.
A strong array layout shows:
Module layout by roof plane (or ground array row layout)
Module make, model, and quantity
Tilt and azimuth, or roof pitch and orientation
Rooftop obstructions: vents, skylights, chimneys, fire risers, mechanicals
Required setbacks and access pathways
Attachment and rail layout, cross-referenced to racking details
The site plan covers the property-level view:
Building footprint and array location
Property lines and key setbacks
Service equipment, utility meter, inverter, and battery locations
Conduit routing and trench paths for ground-mounted equipment or detached structures
Point of interconnection
Rooftop pathway and setback rules come from the International Fire Code (IFC), with 2024 IFC Chapter 12Â covering rooftop energy systems. Many AHJs use IFC-based rules for PV pathways and ridge or edge setbacks, though local amendments can tighten or relax specific requirements. Show the pathways graphically on the plan rather than burying them in a note.
GreenLancer's solar permit design service produces SLDs, site plans, wiring diagrams, and interconnection diagrams ready for AHJ and utility submission. Create a free installer account and upload your first project in a few minutes.
Code Details Every Solar PV System Diagram Needs
Some details cause more plan-review pushback than others. Grounding, rapid shutdown, and arc-fault protection are the three that every solar PV system diagram needs to address clearly. All three are places where vague notes regularly get rejected in favor of specific equipment and locations.
Solar Panel Grounding Diagram
The grounding and bonding drawing is one of the most important safety documents in the set. If you want an SEO-friendly term, this is your solar panel grounding diagram.
Include:
Equipment grounding conductor (EGC) sizing and path
Bonding method for rails and modules (listed bonding hardware, WEEB washers, integrated bonding clamps)
Grounding electrode system connection
Bonding jumpers at expansion joints or between separated rails
Listed hardware compatibility with the racking system
On a smaller residential job, grounding can sit on the SLD. On larger systems with multiple arrays or complex bonding paths, put the grounding on its own sheet so it does not get buried in inverter data. NEC 690 Part V covers PV grounding requirements, and inconsistent grounding notes are one of the most common reasons a plan set gets flagged.
Rapid Shutdown Diagram (NEC 690.12)
NEC 690.12 requires rapid shutdown on PV systems installed on or in buildings, so first responders can de-energize controlled conductors quickly. The current requirement limits conductors outside the array boundary to 30 volts within 30 seconds of initiation, and conductors inside the array boundary to 80 volts within 30 seconds.
Your rapid shutdown portion should show:
Shutdown initiation device and location
Controlled conductors and equipment
MLPE or inverter-based shutdown method
Array boundary and controlled boundary, per NEC 690.12(B)
Required placards and label locations, per NEC 690.12(D)
Rapid shutdown labeling is checked in almost every permit review. The 2023 NEC solar code updates cover the current requirements and labeling references. If you use a module-level rapid shutdown system, confirm the PVRSS listing matches the inverter or shutdown controller on the SLD.
DC Arc-Fault Protection (NEC 690.11)
NEC 690.11 requires listed DC arc-fault protection on PV systems with source or output circuits operating at 80 volts DC or more between any two conductors. Most residential string and hybrid inverter systems meet this through AFCI-capable inverters that carry the appropriate listing.
On the diagram, show the AFCI-capable equipment and its listing in the equipment notes. If the inverter is not AFCI-listed, a separate listed AFCI device has to appear on the drawing. NEC 690.11 includes exceptions for PV arrays that are not mounted on or in buildings, and for certain DC output circuits in metallic raceways or enclosures. Call out which exception applies if you are relying on one.
Single Line Diagram for Solar PV System with Batteries
Adding storage changes the diagram. A single line diagram for solar PV system with batteries shows the PV source, inverter, battery, critical loads panel, and transfer equipment in a way that lets a reviewer confirm safe behavior during grid outages, backup transitions, and normal grid-tied operation.
The two main architectures are AC-coupled and DC-coupled:
AC-coupled. A battery inverter connects to the AC side of the main panel, with a separate PV inverter on the same AC bus. The battery system sees the grid as another AC source, and backup behavior is handled by the battery inverter and transfer equipment. Common for retrofits on existing PV systems.
DC-coupled. A hybrid inverter handles both PV and battery on a shared DC bus. Fewer power conversions, higher round-trip efficiency, and often a simpler diagram. Common for new-build PV plus storage projects.
Modern residential storage inverters (Tesla Powerwall, Enphase IQ Battery, FranklinWH, Sol-Ark, EG4) integrate battery management and charge control inside the hybrid or battery inverter. Standalone DC charge controllers show up mostly on legacy off-grid or certain DC-coupled commercial designs. If you are drawing a residential hybrid system, the charge controller is usually not a separate component on the diagram.
A complete storage SLD should identify:
AC-coupled or DC-coupled architecture
PV inverter, battery inverter, or hybrid inverter
Battery management system (BMS)
Critical loads panel, if used
Transfer equipment or backup interface
DC and AC disconnects, per NEC 690.13 and 706
Utility interconnection point
UL 9540 listing for the ESS
NEC Article 706 covers energy storage systems, and NEC 706.7 addresses commissioning and maintenance records. NEC 706.7 commissioning requirements apply to ESS installations other than one- and two-family dwellings, so a residential battery permit typically does not require the full commissioning document that a commercial ESS does. The solar battery storage permit guide covers the plan-set details specific to ESS projects.
Key Components to Label in a Solar Panel System Diagram

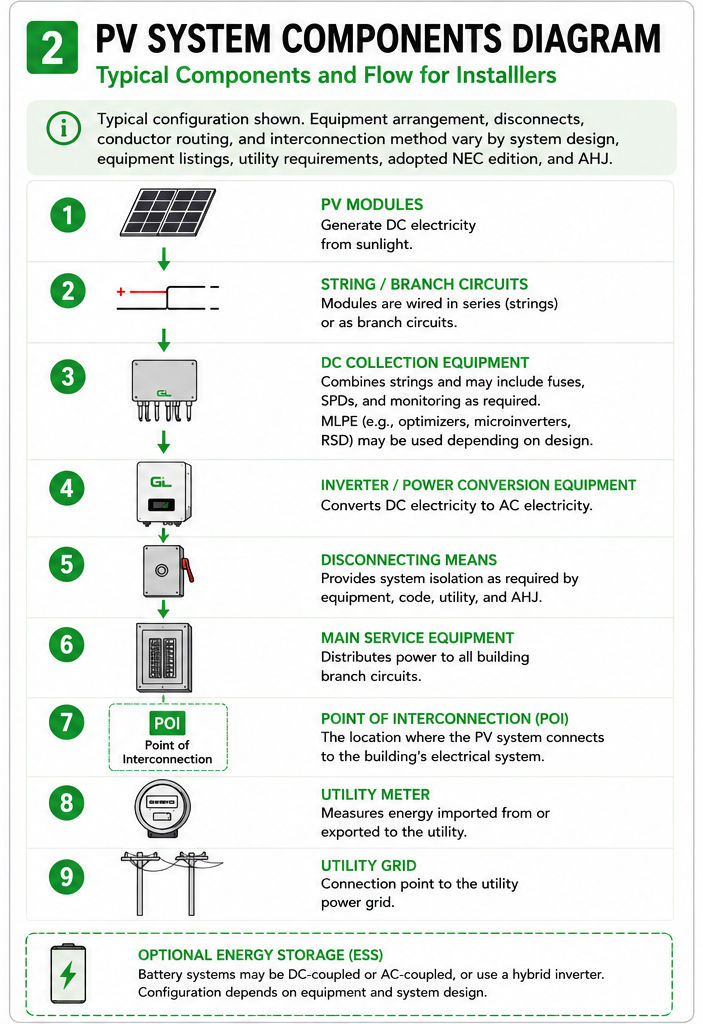

A clear solar panel system diagram identifies the major components and shows how they connect. The notes below cover the symbol and what installers should label. These apply to a residential solar panel connection diagram, a solar panel parts diagram, and larger commercial drawings.
PV Modules
Symbol: A rectangle with diagonal lines or shading representing the PV cells.
Label the module make, model, quantity, STC ratings (Voc, Isc, Vmp, Imp, Pmax), and temperature coefficient if relevant to cold-weather Voc calculations. In a solar panel parts diagram, modules are the primary component connected to the rest of the system through string or branch circuits.
Solar Inverters
Symbol: A rectangle with a sine wave graphic inside.
Inverters convert DC electricity from the modules into AC electricity the home or grid can use. Label the make, model, AC and DC ratings, UL 1741 or UL 1741-SB listing, and whether the inverter is a string, microinverter, or hybrid. Hybrid inverters also need battery input ratings if storage is present.
Junction Boxes
Symbol:Â A square or rectangular box with terminals or connections inside
Junction boxes play a crucial role in a solar energy diagram by housing the electrical connections between components, such as solar panels and the inverter. They help ensure safe and efficient power transmission while protecting electrical components from environmental damage.
Combiner Boxes
Symbol: A rectangular box with multiple inputs feeding one output.
Combiners consolidate PV string circuits into a single output conductor before the inverter. Used mostly on string inverter systems, especially C&I and ground-mount designs. Label the combiner fuse ratings, number of inputs, and whether a DC disconnect is integrated.
DC and AC Disconnects
Symbol: A switch inside a square, often with a diagonal line through the switch.
Disconnects provide safe isolation points for maintenance and inspection. NEC 690.13 covers DC disconnects. NEC 690.15 covers AC disconnect requirements. Label the rating (amps, volts), location, and whether the disconnect is lockable, since utilities often require a lockable, visible AC disconnect at the service.
Overcurrent Protection Devices (Breakers and Fuses)

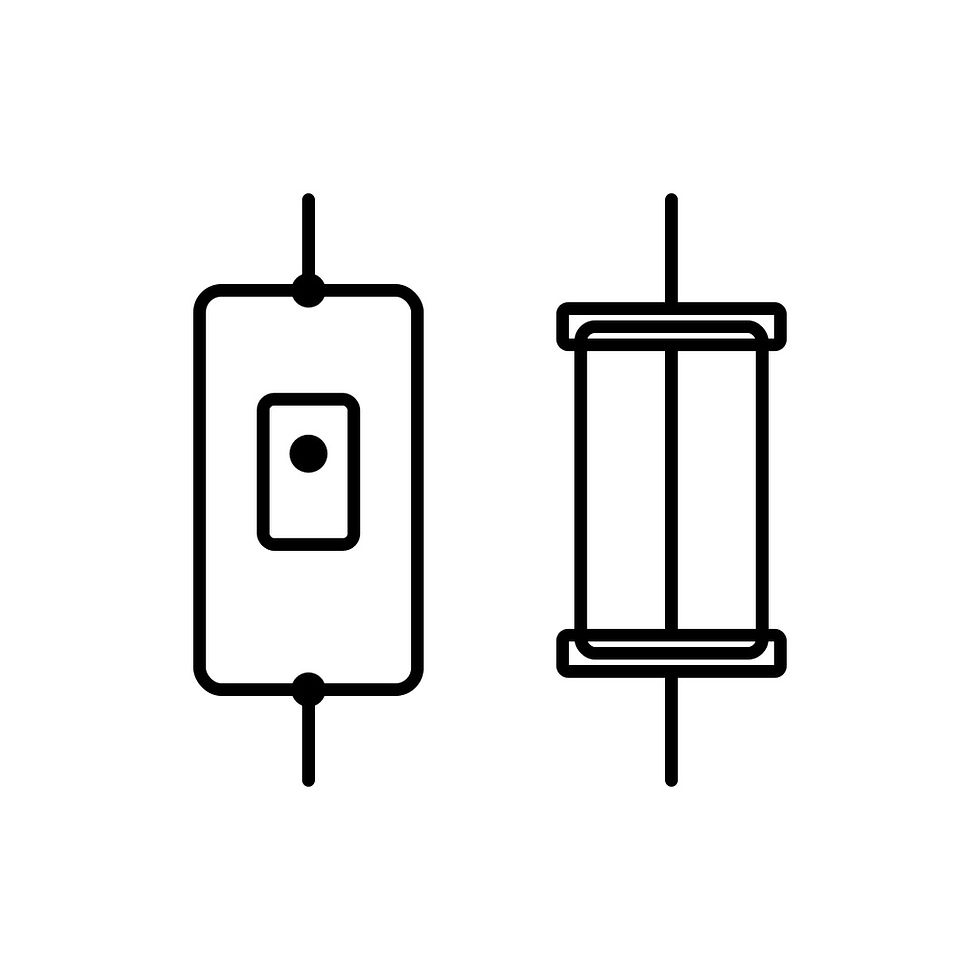

Symbol: Breakers appear as a square with a curved switch arm. Fuses appear as a small rectangle or cylinder inside the circuit line.
Label the amp rating, interrupt rating (AIC), and where each OCPD sits on the SLD. A load-side solar breaker under the 120% method in NEC 705.12 must satisfy: (solar breaker amps + main breaker amps) ≤ (panel bus rating × 1.20).
Utility Meter and Production Meter
Symbol: A circle with an "M" or "kWh" inside, typically shown near the service equipment.
Label the meter as a utility revenue meter (bi-directional, for net metering) or a production meter (for PBI or certain utility programs). Some utility territories require a dedicated production meter socket. Others read production directly from the inverter.
Battery and Storage Equipment
Symbol: A rectangle with positive (+) and negative (-) terminals, or a stacked-line battery icon.
Label the battery make, model, usable kWh capacity, nameplate kWh, and UL 9540 listing. Include the battery inverter or hybrid inverter, and the BMS if the inverter does not integrate it.
How to Create a Permit-Ready Solar Panel System Diagram
A permit-ready diagram starts with complete inputs and ends with a cross-checked plan set. Short steps work better than a long narrative, so here is the sequence we use at GreenLancer.
🟩 Step 1: Gather System and Documentation Inputs
Your solar power diagram should reflect actual listed equipment, not placeholders. Reviewers often compare the drawing against manufacturer documentation directly, so pull the spec sheets and utility requirements together before starting.
Collect:
PV module make/model, quantity, and current spec sheet
Inverter spec sheet and UL 1741 or UL 1741-SB listing
ESS/battery spec sheet, UL 9540 listing, and installation manual
Racking and attachment hardware documentation
Rapid shutdown and MLPE spec sheets with PVRSS listing
Production meter spec sheet, if required by the utility
Conductor sizes, disconnects, breakers, and OCPD selections
Main service panel rating and interconnection method
Utility-specific interconnection requirements and application forms
AHJ submittal checklist and any local code amendments
🟩 Step 2: Choose the Right Diagram Types
A typical residential permit package includes an SLD, a site plan and roof layout, a wiring diagram, and a grounding detail. Larger systems, ESS projects, or utilities with stricter requirements add a three-line diagram, a dedicated interconnection diagram, or a detailed storage SLD.
Common combinations:
Residential PV only: SLD, site plan, array layout, wiring details
Residential PV plus storage: above, plus dedicated storage SLD and critical loads breakdown
Light commercial: SLD or three-line, site plan, interconnection diagram, PE stamp if required
Ground-mount: add trench routing, grounding electrode detail, detached-structure disconnect requirements
🟩 Step 3: Use Standard Symbols and Clear Labels
Use consistent electrical symbols and readable labels. Reviewers should be able to trace the power path without guessing.
On every solar PV system diagram, confirm:
Voltage and current values (Voc, Isc, operating voltage, and current)
Breaker and conductor sizes
Busbar ratings on the main panel
Equipment make/model names
Disconnect locations and ratings
Required placards and their location notes
🟩 Step 4: Verify Stringing, OCPD, and Cold-Weather Voc
String sizing is where a lot of diagrams get flagged. The cold-weather Voc must stay under the inverter's maximum DC input at the site's record low temperature. The OCPD on each string circuit has to match the module Isc × 1.56 factor under NEC 690.8.
Document:
Modules per string and number of parallel strings
Inverter input limits (min Vmp, max DC voltage, max input current)
Cold-weather Voc calculation with temperature coefficient
String OCPD sizing
DC-to-AC ratio and inverter loading
For a ground-up review of stringing math, solar panel design software like Aurora and HelioScope handle most of the calculation automatically. Always sanity-check the output against the module and inverter spec sheets.
🟩 Step 5: Cross-Check the Full Plan Set Before Submission
Before submitting, verify that the drawings, calculations, and equipment schedule all match. A clean solar energy diagram package should be internally consistent from page to page.
Final checks:
Diagram values match the calculations
Equipment models match the bill of materials (BOM)
Layout matches module count and inverter design
Interconnection method is shown consistently
Grounding and rapid shutdown details are included where required
Labels and placards match the AHJ and utility requirements
Once the system is installed, confirm the built system matches the stamped drawings. If field conditions changed anything (conduit routing, equipment substitution, added disconnects), update the plan set as an as-built before submitting for inspection and PTO.
Top Reasons a Solar Power Diagram Gets Rejected in Plan Review
Before running through the common rejection causes, one caveat. Plan review requirements vary by AHJ, utility, project type, equipment selection, and adopted code cycle. Local amendments frequently layer additional rules on top of the NEC and IFC. A detail that passes review in one town may trigger corrections in the next, so always check the AHJ submittal checklist and utility interconnection guide before finalizing the plan set.
The issues that come up most often across jurisdictions:
Mismatch between the SLD, calculations, and BOM. The most common rejection cause, and the easiest to avoid with a cross-check pass.
Missing or incorrect rapid shutdown labeling. NEC 690.12(D) labeling is frequently flagged on residential rooftop reviews.
Undersized or undocumented grounding electrode conductor. EGC sizing must match the largest OCPD in the PV circuit, per NEC 250.
120% rule violation on load-side interconnection. Reviewers run the math: (PV breaker + main breaker) cannot exceed (bus rating × 1.20) under NEC 705.12.
Missing AC or DC disconnect within sight of equipment. NEC 690.13 and 690.15 require accessible disconnects. Utilities often add a lockable AC disconnect requirement on top.
Incomplete rooftop pathway and setback dimensions. IFC 2024 Chapter 12 and SolSmart guidance are common AHJ references.
Inverter output circuit conductor ampacity not matched to OCPD. Conductor sizing needs to match breaker rating and derating for temperature and conduit fill.
Permitting timelines vary widely by jurisdiction, and NREL PII timeline research shows just how much they differ. A full walkthrough of the submittal process is in the how to get a solar permit guide.
Get Permit-Ready Solar Diagrams from GreenLancer
Every solar project lives or dies by the quality of its plan set. GreenLancer has produced permit-ready solar energy diagrams for installers in all 50 states since 2013, including single-line diagrams, interconnection packages, site plans, grounding details, and full engineering review. Most permit-design orders are returned within a few business days, with revisions handled at no extra cost until the jurisdiction approves.
Complete the form below to get started with GreenLancer. Setup takes less than two minutes, and you can order solar permit design, PV interconnection, or solar engineering from the same dashboard.
Frequently Asked Questions
What is the difference between a solar single-line diagram and a solar interconnection diagram?
An SLD shows the full electrical path of the PV system from the array to the point of interconnection. An interconnection diagram focuses on the utility-facing side: meter location, PCC, interconnection method, AC disconnect, and inverter listing notation. Many permit packages include both, because the AHJ and the utility review different things.
When is a three-line diagram required instead of a single-line solar diagram?
A three-line diagram is required for projects that need phase-level detail, fault-current contributions, or conductor-level information. Most residential jobs do not need one. Commercial and industrial projects, service upgrades, and utility programs with stricter documentation usually require a three-line diagram alongside or instead of the standard SLD.
What is the difference between a solar panel connection diagram and a solar panel circuit diagram?
A solar panel connection diagram shows how physical components connect: modules, inverters, disconnects, and panels. A solar panel circuit diagram goes further and shows protection devices, circuit paths, and the electrical relationships needed for troubleshooting. Connection diagrams are field-install focused. Circuit diagrams support diagnostics and long-term service.
How detailed should a residential solar single-line diagram be for permitting?
A residential SLD should include equipment ratings, breaker sizes, disconnects, service panel details, and the interconnection point. The biggest issue in plan review is mismatched information, so the single line needs to match the equipment schedule and calculations exactly. Reviewers also expect rapid shutdown, grounding, and labeling references to appear on the drawing or a supporting sheet.
What does NEC 690.12 require a rapid shutdown diagram to show?
NEC 690.12 requires rapid shutdown for PV systems on or in buildings, with controlled conductors outside the array boundary reduced to 30 volts within 30 seconds, and inside the array boundary reduced to 80 volts within 30 seconds. The diagram should show the initiation device, controlled conductors, array boundary, MLPE or inverter-based shutdown method, and required placards per NEC 690.12(D).
When is DC arc-fault protection required on a solar diagram under NEC 690.11?
NEC 690.11 requires listed DC arc-fault protection on PV systems with source or output circuits operating at 80 volts DC or more between any two conductors. Most residential string and hybrid inverter systems meet this through AFCI-capable inverters. The diagram should show the inverter's listing, or a separate listed AFCI device if the inverter is not AFCI-capable. Exceptions exist for arrays that are not building-mounted and for certain DC circuits in metallic raceways.
How do you document a single-line diagram for solar PV system with batteries without cluttering the drawing?
Keep the main power path clear, then use short callouts for battery details. Show whether the system is AC-coupled or DC-coupled, the battery inverter or hybrid inverter, the DC and AC disconnects, the critical loads panel, if present, and the UL 9540 listing. If the battery details crowd the main SLD, move them to a dedicated storage SLD sheet.
What is the 120% rule, and where does it show up on an on grid solar system diagram?
The 120% rule is the load-side interconnection limit in NEC 705.12: (PV backfeed breaker + main breaker) cannot exceed (panel bus rating × 1.20). It appears on the SLD near the main service panel and interconnection point, often as a calculation note or callout. If the sum exceeds the limit, a supply-side tap under NEC 705.11 is usually the alternative.
What are the most common reasons a solar power diagram gets rejected in plan review?
The most common causes are mismatches between drawings and calculations, incomplete rapid shutdown labeling, undersized grounding conductors, 120% rule violations, missing disconnects, and incomplete rooftop pathway dimensions. Most rejections come from drawings that are technically close but have small inconsistencies between pages.
Can GreenLancer create permit-ready solar panel system diagrams for my projects in all 50 states?
Yes. GreenLancer has produced permit-ready solar diagrams for installers nationwide since 2013, including SLDs, site plans, wiring diagrams, interconnection diagrams, and storage SLDs. Sign up for a free installer account to submit your first project and get permit design, engineering, or interconnection packages turned around quickly.
